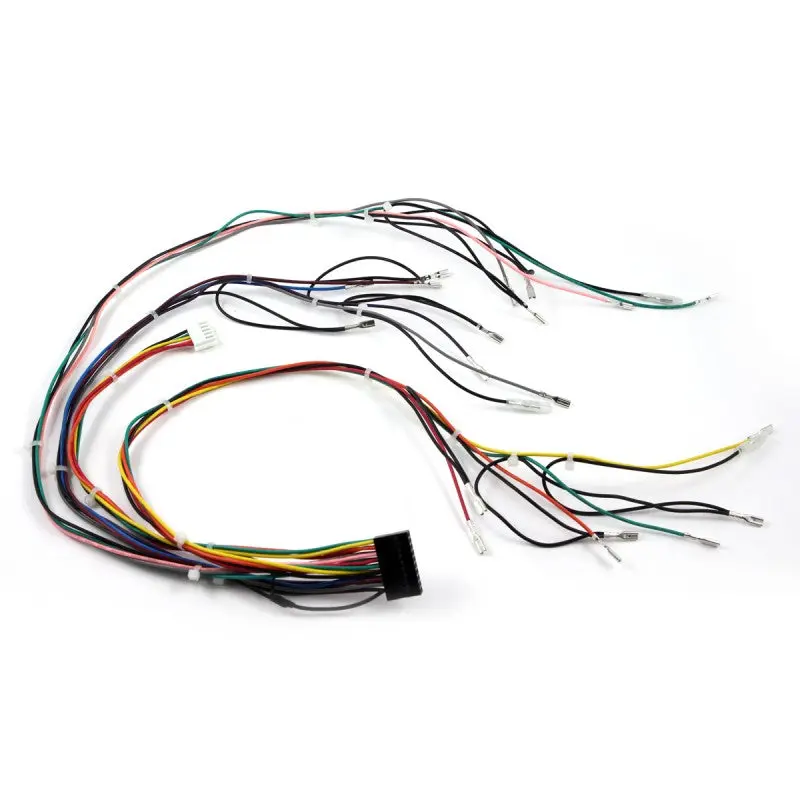

This custom complete harness includes a JST PH connector for the standard Sanwa JLF joystick (modification required for Seimitsu and others) two 4 button harnesses for action buttons, and one 3 pin harness for control inputs.

All of the female quick disconnects for the buttons are .110 size, the size of the 20pin connection itself is .100. This harness will work for all buttons that use .110 size male headers.

DOWNLOAD

20PINHARNESSDIAGRAM

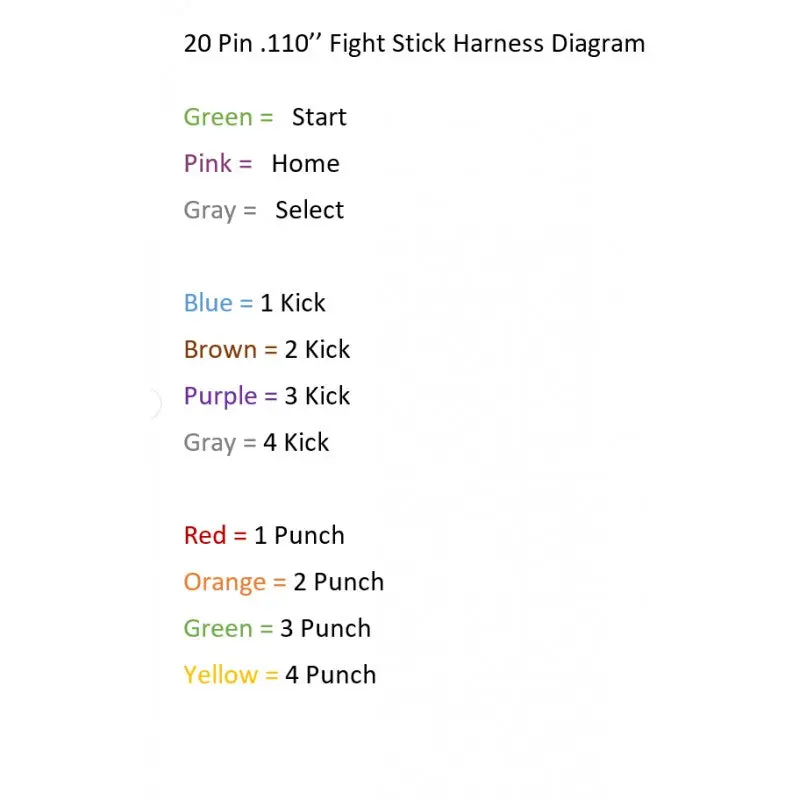

Diagram for 20pin Harness
