Brook PS3 / PS4 Fighting Board Plus
Overview:

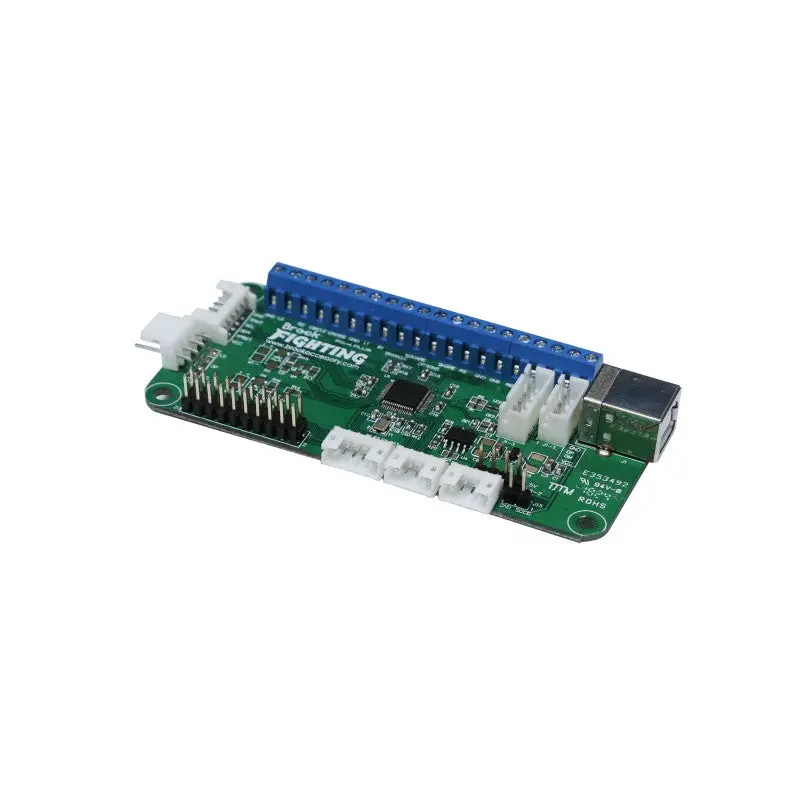

Brooks new PS3/PS4 Fighting Board Plus is a new revision of the original PS3/PS4 board but with pre-soldered connectors allowing easy hook up using harnesses.Ā Please note that this PS3/PS4 PCB doesn't have audio, if you need audio you can upgrade to the PS3/PS4+ Audio Board by Brook. If you don't need the audio function but want an easy to set up PS3/PS4 board, this will be the board you want.
Features:
Ā
- Compatible with all PS3 / PS4 buttons and Xinput on PC
- Eighteen different button configurations
Ā - Four different Player LEDs
Ā - Support One Touchpad function (optional purchase)
Ā - Support Turbo Key function
Ā - Automatically change the modes on different consolesĀ
Ā - Manually change PS3/PS4/PC modes
Ā - Support two SOCD modes
Ā - Support LS, RS, and DP modes
Ā - Firmware upgradable
Wiring Diagrams:
J15 jumper settings for alternative SOC:
Manually changingĀ directional input modes:
Ā
Ā
