Seimitsu PS-15 30 mm Snap-in Button - Pink
The Seimitsu PS-15 Pink pushbutton is a low profile snap-in pushbutton for those panels with a tight fit. If space is a concern, these buttons are for you. With a slight convex plunger and snap in installation, you'll be hittin' that box in no time!Â

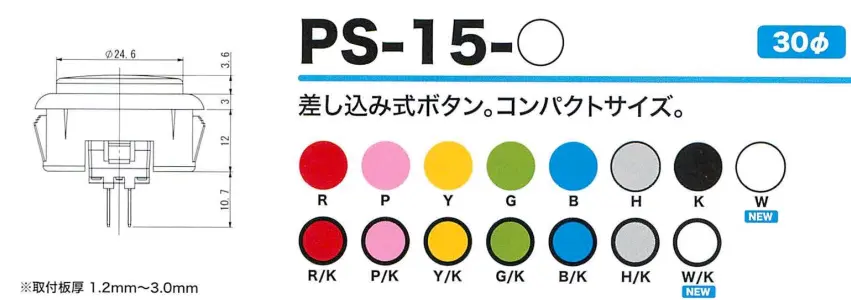

This button has a much shorter body compared to other models and can be mounted in material with 1.2mm to 3mm thickness.
Specification:
- Solid rim, Solid color plunger
- Diameter: 30 mm (1.181 inch)
- Overall diameter: 34.5 mm (1.358 inch)
- Installation depth: 21 mm (0.83Â inch)
- .110" quick connects
-
Snap-in buttons
Microswitch Specification:
- Product Name:Â MM9-3
- Manufacturer: Tokai Tushinkizai (æ±æ”·é俥ćšææ ȘćŒäŒç€Ÿ)
- Operating force: 100 ± 30g
- Stroke distance to Operating Position: 2.5 ± 0.3mm
- Bounce back to Free Position: Less than 10mSec
- Mechanical Endurance (Cycle): Over 2,000,000 times
Original: $3.95
-65%$3.95
$1.38Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Seimitsu PS-15 Pink pushbutton is a low profile snap-in pushbutton for those panels with a tight fit. If space is a concern, these buttons are for you. With a slight convex plunger and snap in installation, you'll be hittin' that box in no time!Â
This button has a much shorter body compared to other models and can be mounted in material with 1.2mm to 3mm thickness.
Specification:
- Solid rim, Solid color plunger
- Diameter: 30 mm (1.181 inch)
- Overall diameter: 34.5 mm (1.358 inch)
- Installation depth: 21 mm (0.83Â inch)
- .110" quick connects
-
Snap-in buttons
Microswitch Specification:
- Product Name:Â MM9-3
- Manufacturer: Tokai Tushinkizai (æ±æ”·é俥ćšææ ȘćŒäŒç€Ÿ)
- Operating force: 100 ± 30g
- Stroke distance to Operating Position: 2.5 ± 0.3mm
- Bounce back to Free Position: Less than 10mSec
- Mechanical Endurance (Cycle): Over 2,000,000 times
